LPG
LPG
BLACK DIAMOND
N2737
I.D.
13/32” – 1 13/16″
W.P.
350 psi
Temp.
-40°F to +200°F
Application
- Hard-wearing transfer hose for LPG
- Compatible with propane, butane, and natural gas when assembled in compliance with local, regional, and national codes and standards. For use only in well-ventilated areas
- Superior strength, durability and kink resistance created by the combination of high-tensile polycotton and stainless steel braids
- Meets CSA 8.1:15 (Type II)
- Approved to UL 21 specifications
Download Technical Data Sheet

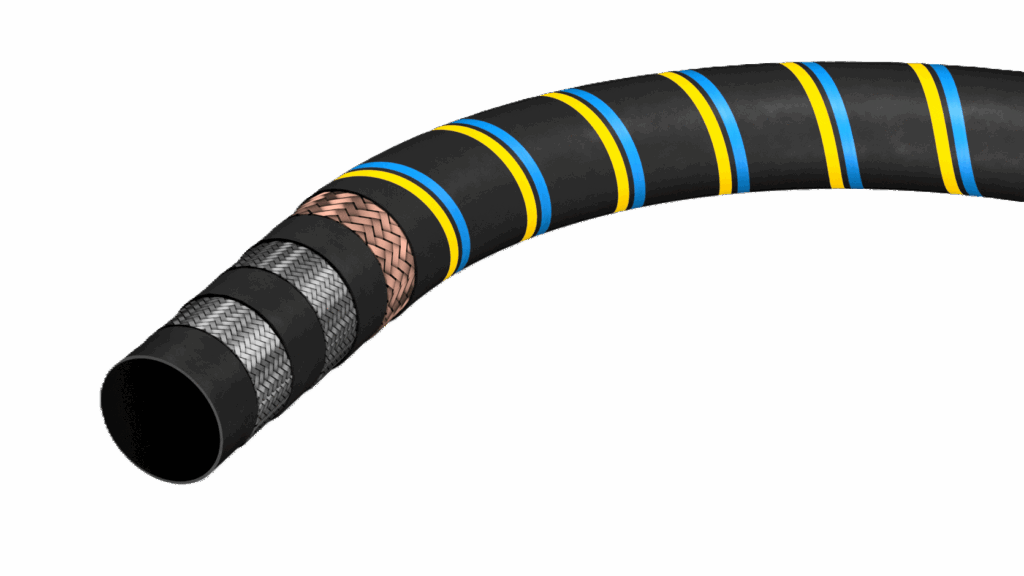

CSA TYPE 1 LPG HOSE
N2567
I.D.
1 1/2″ – 2″
W.P.
350 psi
Temp.
-40°F to 180°F
Application
- For conveying LPG from bulk to tank truck and from truck to domestic storage
- Compatible with propane, butane, and natural gas for use in well-ventilated areas
- ATTENTION! Not to exceed 20 psi max working pressure when used for natural gas transfer
- Meets CSA 8.1:15 (Type 1)
- Approved to UL 21 specification
Download Technical Data Sheet
ELEPHANT HIDE
N2804
I.D.
1″ – 2″
W.P.
350 psi
Temp.
-40°F to +180°F
Application
- Premium LPG transfer hose for demanding conditions
- Compatible with propane, butane, and natural gas for use in well-ventilated areas
- ATTENTION! Not to exceed 20 psi max working pressure when used for natural gas transfer
- Exceptionally high abrasion-resistant cover
- Ideal for tank truck service and trailer to storage use
- Approved to UL 21 specifi cations
Download Technical Data Sheet

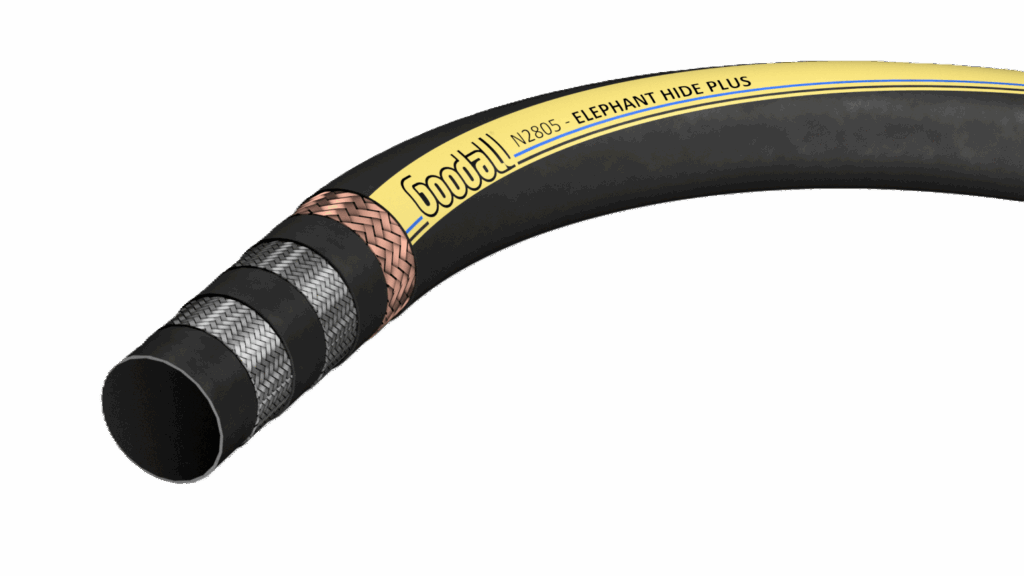

ELEPHANT HIDE PLUS
N2805
I.D.
1″ – 3″
W.P.
350 psi
Temp.
-40°F to +180°F
Application
- Superior LPG transfer hose for demanding conditions
- Compatible with propane, butane, and natural gas for use in well-ventilated areas
- ATTENTION! Not to exceed 20 psi max working pressure when used for natural gas transfer
- Reinforced with corrosion-resistant stainless steel braids
- Exceptional high abrasion-resistant cover
- Ideal for tank truck service and trailer-to-storage use
- Approved to UL 21 specifications
Download Technical Data Sheet

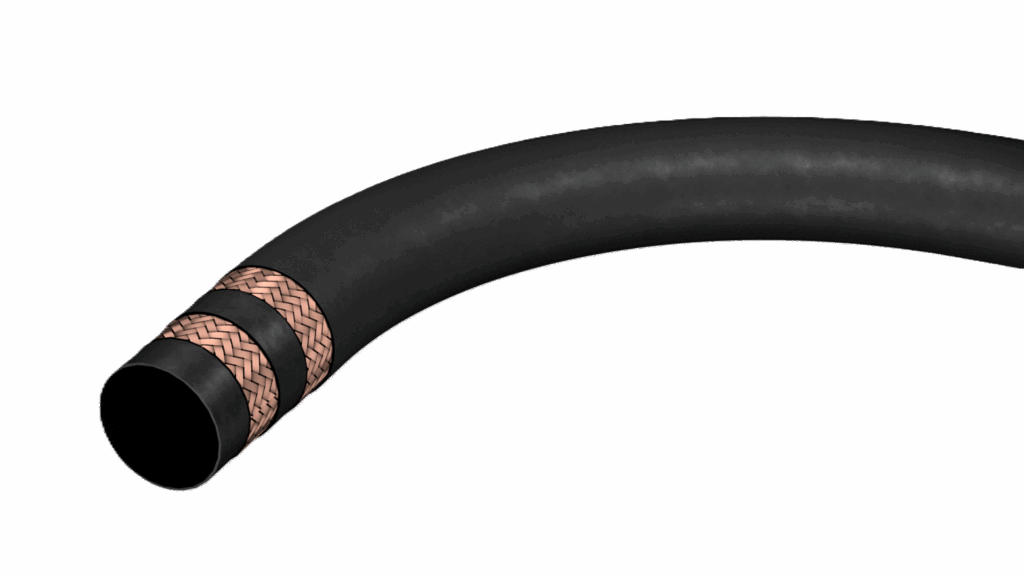

Impact LPG PT
N372A-2
I.D.
1 1/4″-2″
W.P.
350 psi
Temp.
-40°F to +180°F
Application
- For transferring LPG and natural gas in bulk storage and bulk truck service
- Compatible with propane, butane, and natural gas for use in well-ventilated areas
- ATTENTION! Not to exceed 20 psi max working pressure when used for natural gas transfer
- Light and flexible
- Approved to UL 21 specifications
Download Technical Data Sheet
